FAX: 773 792-2129
SWITCHES

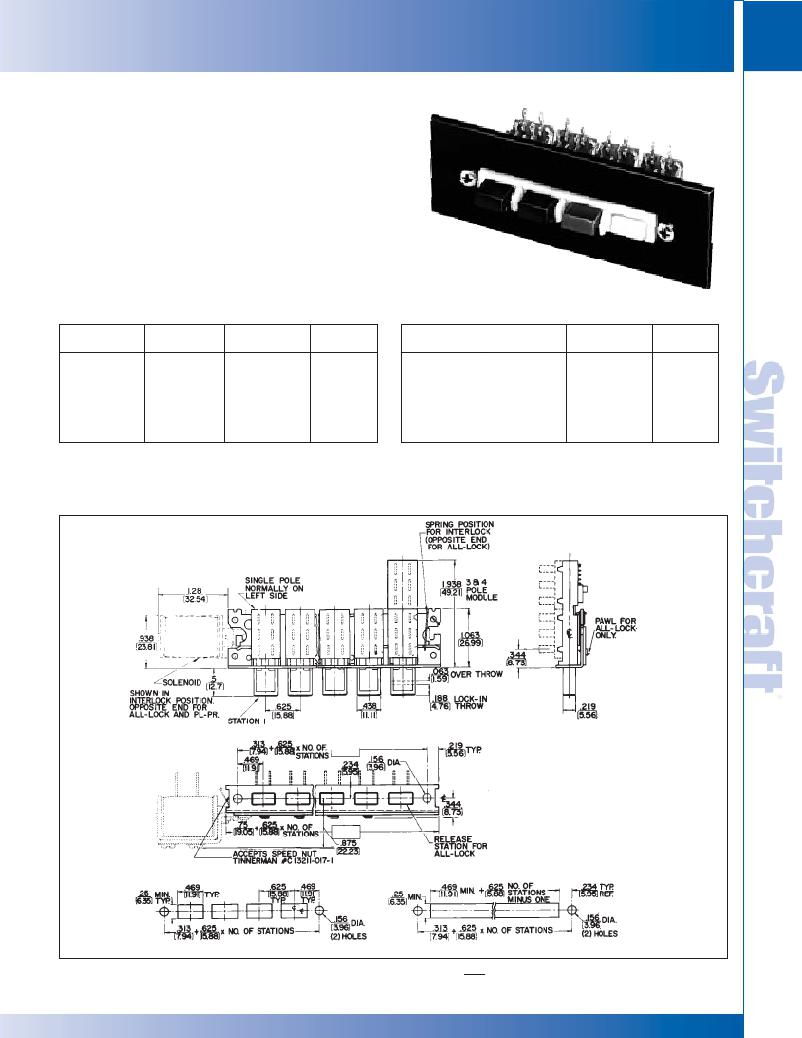

DW MULTI-SWITCH – SERIES 65000
309
* Please visit the product pages on our website for the most up-to-date product information
MULTIPLE-STATION SWITCHES (continued)
DW MULTI-SWITCH
SERIES 65000
Available with up to 18 non-illuminated stations in a single row.
Maximum switching per station is 4-C (4PDT). Contacts are
rated: 3A, AC, 0.5A DC, 125V, non-inductive load. Integral
black button is supplied with each station. Switches mount with
#6 screws and nut (not furnished). Contact Switchcraft for spe-
cial assemblies, with ganged assemblies, solenoid release,
PC or wire-wrapping terminals, or escutcheon modules.
SERIES 65000 - Four-station with
DW Escutcheon Modules installed
PART NUMBERS / 2-C PER STATION 1
PART NUMBERS / 4-C PER STATION 1
Interlock
Push-Lock/
Number of
Interlock
Push-Lock/
Number of
with Lock-Out
65021K206
65041K206
65061K206
65081K206
65101K206
65121K206
Non-Lock
? 65022206
? 65042206
? 65062206
? 65082206
? 65102206
? 65122206
Push-Release
? 65027206
? 65047206
? 65067206
? 65087206
? 65107206
? 65127206
Stations 2
2
4
6
8
10
12
with Lock-Out
? 65021K212
? 65041K212
? 65061K212
? 65081K212
? 65101K212
? 65121K212
Non-Lock
? 65022212
? 65042212
? 65062212
? 65082212
? 65102212
? 65122212
Push-Release
? 65027212
? 65047212
? 65067212
? 65087212
? 65107212
? 65127212
Stations 2
2
4
6
8
10
12
1. Switches with all-lock function are available on special order. Contact Switchcraft.
2. Odd number of stations (3, 5, 7, 9, 11) are available. Switches with
13 through 18 stations also available. Contact Switchcraft.
? Special order only; Contact Switchcraft for price and delivery information.
1. Switches with all-lock function are available on special order.
Contact Switchcraft.
2. Odd number of stations (3, 5, 7, 9, 11) are available. Switches with
13 through 18 stations also available. Contact Switchcraft.
? Special order only; Contact Switchcraft for price and delivery information.
PANEL CUTOUT DIMENSIONS
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
